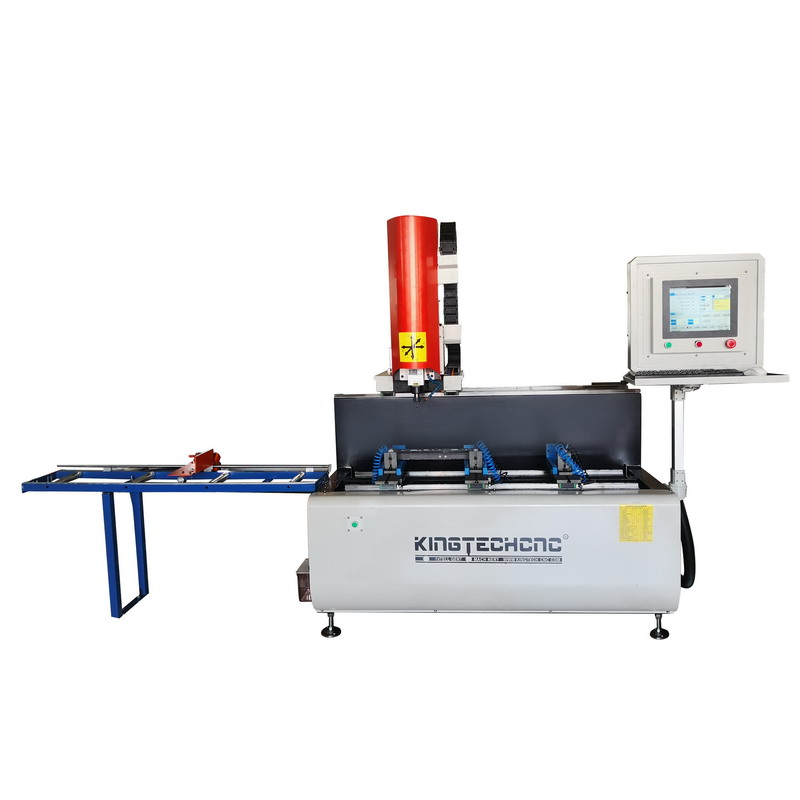

KT-VA3-1200 CNC Milling Machine
1. Main Features
*Suitable for Industry of Doors&Windows,Furniture,etc.
*Applicable for Aluminium,Copper,PVC Profiles processing
*Functions: Milling,Drilling,Routing and Chamfering,etc.
*Professional Optimized and Easy-Operating System
*High Speed Spindle, Stable, Low Noise, Powerful Milling and Drilling
*Oil Spray Cooling System for better processing and longer Tool lifespan
Optional
*Automatic Chip Conveyor System
2.Parameters
Model No. | KT-CNC1200 | ||
Travel Stroke | |||
X-Axis | 1200mm | ||
Y-Axis | 300mm | ||
Z-Axis | 300mm | ||
Feeding | |||
Axis | X | Y | Z |
Feeding Speed | 40m/min | 15m/min | 15m/min |
Processing Speed | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
Spindle | |||
Power | 4.5KW | ||
Speed | 18000rpm | ||
Tool Shank | ISO30 | ||
Power Supply | |||
Voltage | 415V/380V/220V As per requirements | ||
Transformer Requirement | 16 KVA | ||
Air Source | 0.6Mpa~0.9Mpa 600L/min | ||
Cooling | |||
Processing | Mist Spray Cooling System | ||
Spindle | Air-Cooling | ||
Lubrication | |||
Ball Screw | Automatic Oil Lubrication System | ||
Linear Guide | Automatic Oil Lubrication System | ||
Dust Collection | |||
Standard | Manual Push-pull Drawer | ||
Optional | Chip Conveyor System | ||
Machine Data | |||
Length | 1700mm | ||
Width | 1500mm | ||
Height | 1600mm | ||
Weight | 1000kg | ||
Machine Operation Requirements | |||
Electricity | 11KW 3Phase | ||
Environment Temperature | 5~40 C. Degree | ||
Environment Humidity | 30~70 | ||
Vibration Intensity | <0.5G | ||
Protect from floating dust, Corrosive Air | |||
Grounding Resistance | <10Ω | ||
