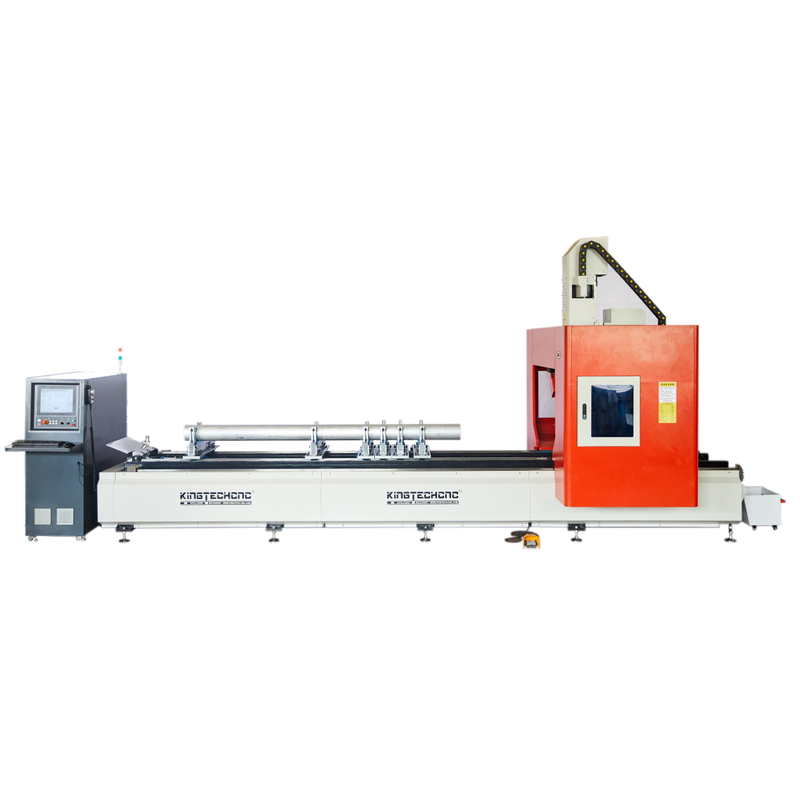

KT-GN4-6500U
CNC Curtain Wall Profile Machining Center
1.Main Features
*Functions: Milling,Drilling,Tapping,Rounting and Chamfering,etc.
*Suitable for Industries of Curtain Wall,Doors&Windows,Smart Homes,etc.
*Professional Industrial CAM PC System or Industrial Control System

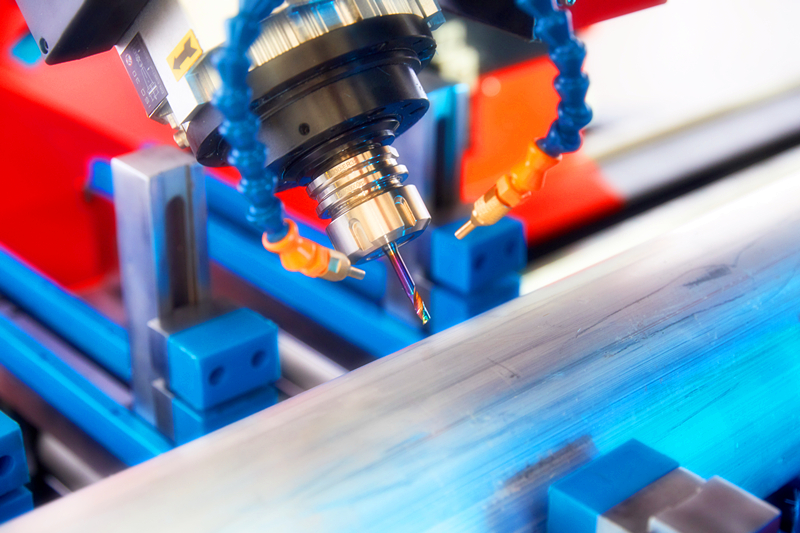

*24000RPM High Speed Spindle, Stable, Low Noise
*8-12 Tools Rotary Umbrella Type Tool Magazine
*4 Axis Servo Control and Dual X Axis Servo
*Remote diagnose and Training available
*USB Connection Ports
*Integrated Internet available
*Oil Spray Cooling System for better processing and longer Tool lifespan
Optional:
*High Efficiency Chip Conveyor System
*Automatic Positioning and Clamping System
2.Parameters
Model No. | KT-GN4-6500U | |||
Travel Stroke | ||||
X-Axis | 6500mm (Different Length is available) | |||
Y-Axis (3 Axis) | 600mm | |||
Y-Axis (4 Axis) | 400mm | |||
Z-Axis | 500mm | |||
Feeding | ||||
Axis | X | Y | Z | C |
Feeding Speed | 60m/min | 60m/min | 20m/min | 20m/min |
Processing Speed | 15m/min | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.02mm | ±0.02mm |
Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.01mm | ±0.01mm |
Servo Motor | ||||
Power | 1.0KW | 0.75KW | 0.85KW | 0.85KW |
Stall Torque | 4.77N.m | 2.39N.m | 3.06N.m | 3.06N.m |
Speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
Spindle | ||||
Power | 7.5KW | |||
Max. Torque | 12.0N.m | |||
Speed | 24000rpm | |||
Tool Magazine | ||||
Magazine Type | Umbrella | |||
Tool Shank | ISO30 | |||
Capacity | 10 | |||
Tool Chang Time | 2s | |||
Power Supply | ||||
Voltage | 415V/380V/220V as per requirements | |||
Transformer Requirement | 20 KVA | |||
Air Source | 0.6Mpa~0.9Mpa 600L/min | |||
Cooling | ||||
Processing | Mist Spray Cooling System | |||
Spindle | Air-Cooling | |||
Lubrication | ||||
Ball Screw | Automatic Oil Lubrication System | |||
Linear Guide | Automatic Oil Lubrication System | |||
Dust Collection | ||||
Standard | Manual Push-pull Drawer | |||
Optional | Chip Conveyor System | |||
Protection | ||||
Machine Protection | Semi-Sealed Protection Door | |||
Guide Rail Protection | X Concertina Movement Protection | |||
Machine Data | ||||
Length | 7200mm | |||
Width | 1800mm | |||
Height | 2500mm | |||
Weight | 3200kg | |||
Machine Operation Requirements | ||||
Electricity | 15KW 3Phase | |||
Environment Temperature | 5~40 C. Degree | |||
Environment Humidity | 30~70 | |||
Vibration Intensity | <0.5G | |||
Protect from floating dust, Corrosive Air | ||||
Grounding Resistance | <10Ω | |||
