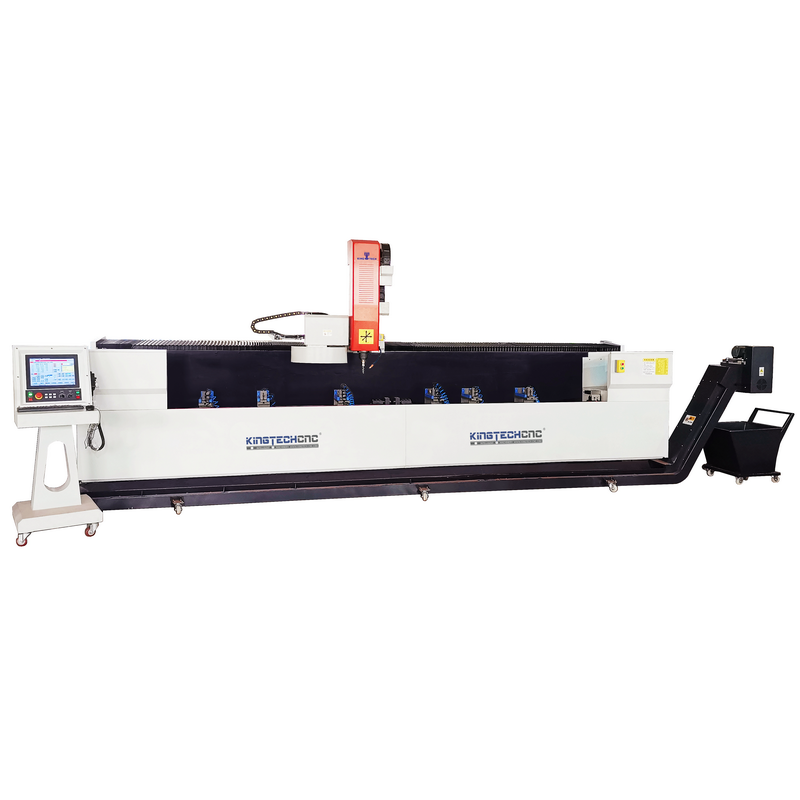

*Applicable for Steel,Iron,Industrial Aluminium Profiles etc. processing.
*Functions: Milling,Drilling,Tapping,Rounting and Chamfering,etc.
*Suitable for Industries of Curtain Wall,Industrial Profiles,Rail Transit,etc.
*Professional Industrial Control System.
*Powerful BT30/40 Mechanical Spindle, Stable, Low Noise
*12T Alongside Servo Driving Umbrella Type Tool Magazine.
*High Efficiency Chip Conveyor System.
*Automatic Protective Door System
*Oil Spray Cooling System for better processing and longer Tool lifespan
Parameters
Model No. | KT-VB3-3000UH | ||
Travel Stroke | |||
X-Axis | 3000mm (Different Length is available) | ||
Y-Axis | 400mm | ||
Z-Axis | 400mm | ||
Feeding | |||
Axis | X | Y | Z |
Feeding Speed | 60m/min | 20m/min | 20m/min |
Processing Speed | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
Repositioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
Servo Motor | |||
Power | 2.0KW | 1.0KW | 1.3KW |
Stall Torque | 11.9N.m | 4.77N.m | 7.88N.m |
Speed | 3000rpm | 3000rpm | 3000rpm |
Spindle | |||
Power | 7.5KW | ||
Max. Torque | 16.0N.m | ||
Speed | 12000rpm | ||
Tool Magazine | |||
Magazine Type | Umbrella | ||
Tool Shank | BT30/40 | ||
Capacity | 12 | ||
Tool Chang Time | 2s | ||
Power Supply | |||
Voltage | 415V/380V/220V As per requirements | ||
Transformer Requirement | 20 KVA | ||
Air Source | 0.6Mpa~0.9Mpa 600L/min | ||
Cooling | |||
Processing | Mist Spray Cooling System | ||
Water Recycle Cooling System (Optional) | |||
Spindle | Air-Cooling | ||
Lubrication | |||
Ball Screw | Automatic Oil Lubrication System | ||
Linear Guide | Automatic Oil Lubrication System | ||
Dust Collection | |||
Standard | Manual Push-pull Drawer | ||
Optional | Chip Conveyor System | ||
Protection | |||
Machine Protection | Semi-Sealed Protection Door | ||
Guide Rail Protection | X Concertina Movement Protection | ||
Machine Data | |||
Height | 2300mm | ||
Width | 1800mm | ||
Length | 5300mm | ||
Weight | 3500kg | ||
Machine Operation Requirements | |||
Electricity | 21KW 3Phase | ||
Environment Temperature | 5~40 C. Degree | ||
Environment Humidity | 30~70 | ||
Vibration Intensity | <0.5G | ||
Protect from floating dust, Corrosive Air | |||
Grounding Resistance | <10Ω | ||
