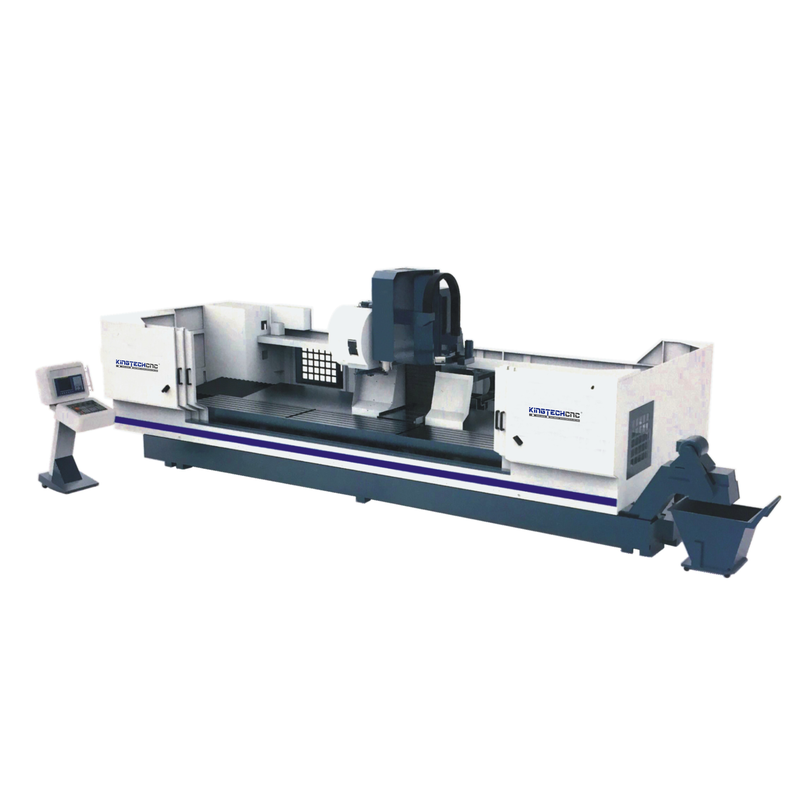

VH 3 4 Axis Metal BT40 CNC Profile Machining Center

*Applicable for Steel,Iron,Industrial Aluminum Profiles processing.
*Functions: Milling,Drilling,Tapping,Routing and Chamfering,etc.
*Suitable for Industries of Aerospace,Auto Parts,New Energy Vehicles,etc.
*Professional Industrial Control System.
*Powerful BT40 Mechanical Spindle, Stable, Low Noise
*24 Tools Disc Tool Magazine
*Direct Driving and Max. 8000g Tool Limit
*Oil Cooling System for better processing and longer Tool lifespan
*Water recycling Coolant System for best processing
*High Strength H250 Casting Machine Base and Worktable
*Protective Door System
Optional:
*High Efficiency Chip Conveyor System.
Quantity:
  • KT-VH4-4500D
  • KINGTECHCNC
  • 8457109900

*Applicable for Steel,Iron,Industrial Aluminum Profiles processing.

*Functions: Milling,Drilling,Tapping,Routing and Chamfering,etc.

*Suitable for Industries of Aerospace,Auto Parts,New Energy Vehicles,etc.

*Professional Industrial Control System.

*Powerful BT40 Mechanical Spindle, Stable, Low Noise

*24 Tools Disc Tool Magazine

*Direct Driving and Max. 8000g Tool Limit

*Oil Cooling System for better processing and longer Tool lifespan

*Water recycling Coolant System for best processing

*High Strength H250 Casting Machine Base and Worktable

*Protective Door System

Optional:

*High Efficiency Chip Conveyor System.


Parameters



Model No.

KT-VH3-4500D

Travel Stroke

X-Axis

4500mm (Different Length is available)

Y-Axis

500mm

Z-Axis

500mm

Worktable

Dimension(L*W)

4500×500mm

Max. Bearing Weight

4000KG

T Groove Width

15mm

T Groove Qty./Center Dis.

5pcs/100mm

Feeding

Axis

X

Y

Z

Feeding Speed

60m/min

28m/min

28m/min

Processing Speed

15m/min

15m/min

15m/min

Positioning Accuracy

±0.05mm

±0.02mm

±0.02mm

Repositioning Accuracy

±0.01mm

±0.01mm

±0.01mm

Servo Motor

Power

3.9KW

3.9KW

5.9KW

Stall Torque

18.6N.m

18.6N.m

28.6N.m

Speed

3000rpm

3000rpm

3000rpm

Spindle

Power

11.0KW

Max. Torque

57.8N.m

Speed

12000rpm

Tool Magazine

Magazine Type

Disc

Tool Shank

BT40

Capacity

24

Tool Chang Time

2s

Driving Type

Direct

Balance Level

G1(ISO1940)

Assembly Direction

Vertical

Tool Limit

Max. Dia.

ф75mm

Max. Length

350mm

Max. Weight

8000g

Power Supply

Voltage

415V/380V/220V As per requirements

Transformer Requirement

25 KVA

Air Source

0.6Mpa~0.9Mpa 600L/min

Cooling

Processing

Mist Spray Cooling System

Water Recycle Cooling System (Optional)

Spindle

Air-Cooling

Lubrication

Ball Screw

Automatic Oil Lubrication System

Linear Guide

Automatic Oil Lubrication System

Dust Collection

Standard

Manual Push-pull Drawer

Optional

Chip Conveyor System

Protection

Machine Protection

Semi-Sealed Protection Door

Guide Rail Protection

X Concertina Movement Protection

Machine Data

Height

3300mm

Width

2800mm

Length

6900mm

Weight

8500kg

Machine Operation Requirements

Electricity

30KW 3Phase

Environment Temperature

5~40 C. Degree

Environment Humidity

30~70

Vibration Intensity

<0.5G

Protect from floating dust, Corrosive Air

Grounding Resistance

<10Ω
