| Quantity: | |
|---|---|

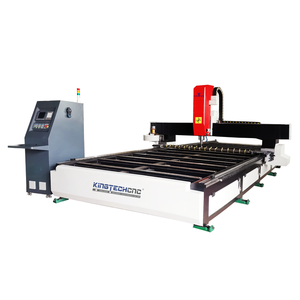

KT-GA4-4000U
KINGTECHCNC
8457109900
*Applicable for Aluminium Composite Panels, Aluminum Panels and Profiles processing.
*Functions: Milling,Drilling,Tapping,Routing,Engraving and Chamfering,etc.
*Suitable for Industries of Curtain Wall,Advertisement,New Energy Vehicles,etc.
*360 Degree Rotary 4 Axis Cutting with Blade as per requirements.
*Professional CAM PC System or Industrial Control System.
*High Speed Spindle, Stable, Low Noise, Powerful Milling and Tapping
*Oil Spray Cooling System for better processing and longer Tool lifespan
*12 Tools Umbrella Type Servo Tool Magazine.
Optional
*Professional Vacuum Pump System
*Guide Roller
Parameters
Model No. | KT-GA4-4000U | |||
Travel Stroke | ||||
X-Axis | 4000mm (Different Size is available) | |||
Y-Axis | 2000mm | |||
Z-Axis | 500mm | |||
Feeding | ||||
Axis | X | Y | Z | C |
Feeding Speed | 60m/min | 20m/min | 20m/min | 20m/min |
Processing Speed | 15m/min | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.02mm | ±0.05mm |
Repositioning Accuracy | ±0.05mm | ±0.05mm | ±0.02mm | ±0.05mm |
Servo Motor | ||||
Power | 1.3KW | 1.0KW | 1.0KW | 0.85KW |
Stall Torque | 4.77N.m | 2.39N.m | 3.06N.m | 2.39N.m |
Speed | 3000rpm | 3000rpm | 3000rpm | 3000rpm |
Spindle | ||||
Power | 11.0KW | |||
Max. Torque | 16.0N.m | |||
Speed | 24000rpm | |||
Tool Magazine | ||||
Magazine Type | Umbrella | |||
Tool Shank | ISO30 | |||
Capacity | 16 | |||
Tool Chang Time | 3s | |||
Power Supply | ||||
Voltage | 415V/380V/220V As per requirements | |||
Transformer Requirement | 18 KVA | |||
Air Source | 0.6Mpa~0.9Mpa 600L/min | |||
Cooling | ||||
Processing | Mist Spray Cooling System | |||
Water Recycle Cooling System (Optional) | ||||
Spindle | Air-Cooling | |||
Lubrication | ||||
Ball Screw | Automatic Oil Lubrication System | |||
Linear Guide | Automatic Oil Lubrication System | |||
Dust Collection | ||||
Standard | Manual Push-pull Drawer | |||
Optional | Chip Conveyor System | |||
Machine Data | ||||
Height | 2580mm | |||
Width | 3100mm | |||
Length | 5500mm | |||
Weight | 7500kg | |||
Machine Operation Requirements | ||||
Electricity | 21KW 3Phase | |||
Environment Temperature | 5~40 C. Degree | |||
Environment Humidity | 30~70 | |||
Vibration Intensity | <0.5G | |||
Protect from floating dust, Corrosive Air | ||||
Grounding Resistance | <10Ω | |||
