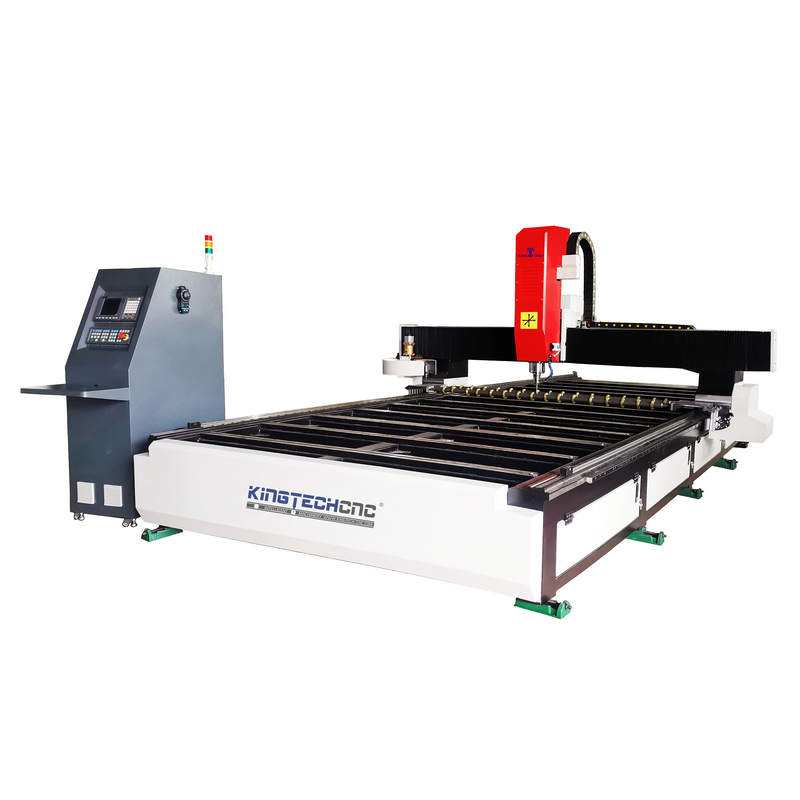

KT-GB3-3000U
KINGTECHCNC
*Applicable for Steel,Iron,Heavy-Duty Aluminium Panels and Profiles processing
*Functions: Milling,Drilling,Tapping,Routing,Engraving and Chamfering,etc.
*Suitable for Industries of New Energy Vehicles,Furnitures,Rail Transit,etc.
*Professional Optimized and Easy-Operating System.
*Powerful Mechanical Spindle, Stable, Low Noise, Powerful Milling and Tapping
*Oil Spray Cooling System for better processing and longer Tool lifespan
*Powerful BT30/40 Mechanical Spindle.
*12 Tools Umbrella Type Servo Tool Magazine.
Parameters
Model No. | KT-GB3-3000D | ||
Travel Stroke | |||
X-Axis | 3000mm (Different Size is available) | ||
Y-Axis | 1500mm | ||
Z-Axis | 300mm | ||
Feeding | |||
Axis | X | Y | Z |
Feeding Speed | 60m/min | 60m/min | 20m/min |
Processing Speed | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.02mm |
Repositioning Accuracy | ±0.05mm | ±0.05mm | ±0.02mm |
Servo Motor | |||
Power | 1.3KW | 1.3KW | 1.3KW |
Stall Torque | 4.77N.m | 4.77N.m | 4.77N.m |
Speed | 3000rpm | 3000rpm | 3000rpm |
Spindle | |||
Power | 7.5KW | ||
Max. Torque | 22.0N.m | ||
Speed | 10000rpm | ||
Tool Magazine | |||
Magazine Type | Disk | ||
Tool Shank | BT30/40 | ||
Capacity | 20/24 | ||
Tool Chang Time | 2s | ||
Power Supply | |||
Voltage | 415V/380V/220V As per requirements | ||
Transformer Requirement | 20 KVA | ||
Air Source | 0.6Mpa~0.9Mpa 600L/min | ||
Cooling | |||
Processing | Mist Spray Cooling System | ||
Water Recycle Cooling System (Optional) | |||
Spindle | Air-Cooling | ||
Lubrication | |||
Ball Screw | Automatic Oil Lubrication System | ||
Linear Guide | Automatic Oil Lubrication System | ||
Dust Collection | |||
Standard | Manual Push-pull Drawer | ||
Optional | Chip Conveyor System | ||
Machine Data | |||
Height | 2580mm | ||
Width | 2820mm | ||
Length | 4650mm | ||
Weight | 4000kg | ||
Machine Operation Requirements | |||
Electricity | 21KW 3Phase | ||
Environment Temperature | 5~40 C. Degree | ||
Environment Humidity | 30~70 | ||
Vibration Intensity | <0.5G | ||
Protect from floating dust, Corrosive Air | |||
Grounding Resistance | <10Ω | ||
