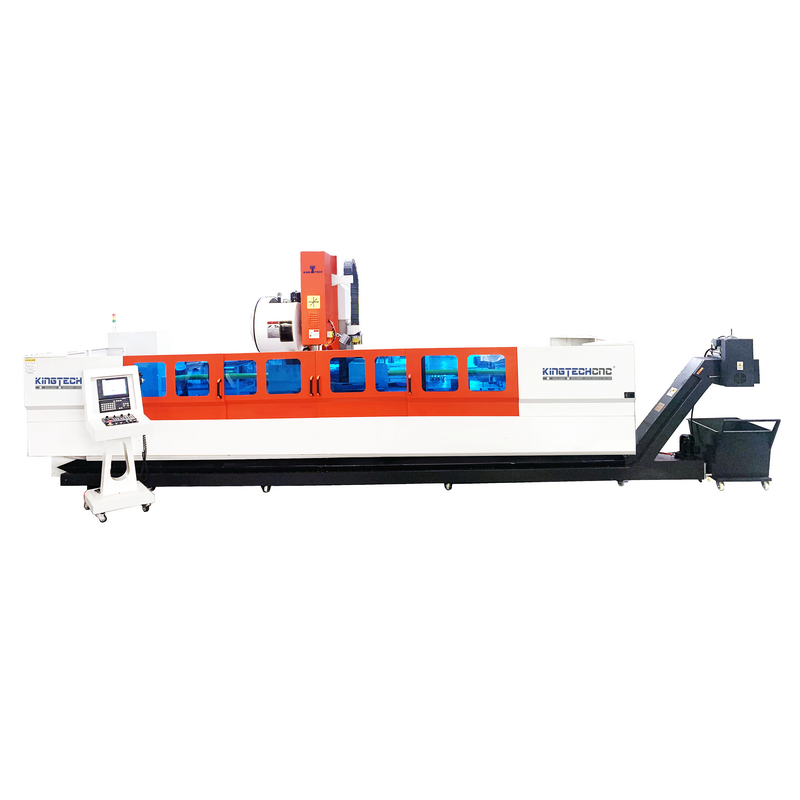

KT-VH3-4000D
KINGTECHCNC
*Applicable for Steel,Iron,Industrial Aluminum Profiles processing.
*Functions: Milling,Drilling,Tapping,Routing and Chamfering,etc.
*Suitable for Industries of Aerospace,Auto Parts,New Energy Vehicles,etc.
*Professional Industrial Control System.
*Powerful BT40 Mechanical Spindle, Stable, Low Noise
*24 Tools Disc Tool Magazine
*Direct Driving and Max. 8000g Tool Limit
*Oil Cooling System for better processing and longer Tool lifespan
*Water recycling Coolant System for best processing
*High Strength H250 Casting Machine Base and Worktable
*Protective Door System
Optional:
*High Efficiency Chip Conveyor System.
Parameters
Model No. | KT-VH3-4000D | ||
Travel Stroke | |||
X-Axis | 4000mm (Different Length is available) | ||
Y-Axis | 500mm | ||
Z-Axis | 500mm | ||
Worktable | |||
Dimension(L*W) | 4000×500mm | ||
Max. Bearing Weight | 4000KG | ||
T Groove Width | 15mm | ||
T Groove Qty./Center Dis. | 5pcs/100mm | ||
Feeding | |||
Axis | X | Y | Z |
Feeding Speed | 60m/min | 28m/min | 28m/min |
Processing Speed | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.05mm | ±0.02mm | ±0.02mm |
Repositioning Accuracy | ±0.01mm | ±0.01mm | ±0.01mm |
Servo Motor | |||
Power | 3.9KW | 3.9KW | 5.9KW |
Stall Torque | 18.6N.m | 18.6N.m | 28.6N.m |
Speed | 3000rpm | 3000rpm | 3000rpm |
Spindle | |||
Power | 7.5KW | ||
Max. Torque | 47.8N.m | ||
Speed | 10000rpm | ||
Tool Magazine | |||
Magazine Type | Disc | ||
Tool Shank | BT40 | ||
Capacity | 24 | ||
Tool Chang Time | 2s | ||
Driving Type | Direct | ||
Balance Level | G1(ISO1940) | ||
Assembly Direction | Vertical | ||
Tool Limit | |||
Max. Dia. | ф75mm | ||
Max. Length | 350mm | ||
Max. Weight | 8000g | ||
Power Supply | |||
Voltage | 415V/380V/220V As per requirements | ||
Transformer Requirement | 25 KVA | ||
Air Source | 0.6Mpa~0.9Mpa 600L/min | ||
Cooling | |||
Processing | Mist Spray Cooling System | ||
Water Recycle Cooling System (Optional) | |||
Spindle | Air-Cooling | ||
Lubrication | |||
Ball Screw | Automatic Oil Lubrication System | ||
Linear Guide | Automatic Oil Lubrication System | ||
Dust Collection | |||
Standard | Manual Push-pull Drawer | ||
Optional | Chip Conveyor System | ||
Protection | |||
Machine Protection | Semi-Sealed Protection Door | ||
Guide Rail Protection | X Concertina Movement Protection | ||
Machine Data | |||
Height | 3300mm | ||
Width | 2800mm | ||
Length | 6900mm | ||
Weight | 8500kg | ||
Machine Operation Requirements | |||
Electricity | 30KW 3Phase | ||
Environment Temperature | 5~40 C. Degree | ||
Environment Humidity | 30~70 | ||
Vibration Intensity | <0.5G | ||
Protect from floating dust, Corrosive Air | |||
Grounding Resistance | <10Ω | ||
*Applicable for Steel,Iron,Industrial Aluminum Profiles processing.
*Functions: Milling,Drilling,Tapping,Routing and Chamfering,etc.
*Suitable for Industries of Aerospace,Auto Parts,New Energy Vehicles,etc.
*Professional Industrial Control System.
*Powerful BT40 Mechanical Spindle, Stable, Low Noise
*24 Tools Disc Tool Magazine
*Direct Driving and Max. 8000g Tool Limit
*Oil Cooling System for better processing and longer Tool lifespan
*Water recycling Coolant System for best processing
*High Strength H250 Casting Machine Base and Worktable
*Protective Door System
Optional:
*High Efficiency Chip Conveyor System.
Parameters
Model No. | KT-VH3-4000D | ||
Travel Stroke | |||
X-Axis | 4000mm (Different Length is available) | ||
Y-Axis | 500mm | ||
Z-Axis | 500mm | ||
Worktable | |||
Dimension(L*W) | 4000×500mm | ||
Max. Bearing Weight | 4000KG | ||
T Groove Width | 15mm | ||
T Groove Qty./Center Dis. | 5pcs/100mm | ||
Feeding | |||
Axis | X | Y | Z |
Feeding Speed | 60m/min | 28m/min | 28m/min |
Processing Speed | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.05mm | ±0.02mm | ±0.02mm |
Repositioning Accuracy | ±0.01mm | ±0.01mm | ±0.01mm |
Servo Motor | |||
Power | 3.9KW | 3.9KW | 5.9KW |
Stall Torque | 18.6N.m | 18.6N.m | 28.6N.m |
Speed | 3000rpm | 3000rpm | 3000rpm |
Spindle | |||
Power | 7.5KW | ||
Max. Torque | 47.8N.m | ||
Speed | 10000rpm | ||
Tool Magazine | |||
Magazine Type | Disc | ||
Tool Shank | BT40 | ||
Capacity | 24 | ||
Tool Chang Time | 2s | ||
Driving Type | Direct | ||
Balance Level | G1(ISO1940) | ||
Assembly Direction | Vertical | ||
Tool Limit | |||
Max. Dia. | ф75mm | ||
Max. Length | 350mm | ||
Max. Weight | 8000g | ||
Power Supply | |||
Voltage | 415V/380V/220V As per requirements | ||
Transformer Requirement | 25 KVA | ||
Air Source | 0.6Mpa~0.9Mpa 600L/min | ||
Cooling | |||
Processing | Mist Spray Cooling System | ||
Water Recycle Cooling System (Optional) | |||
Spindle | Air-Cooling | ||
Lubrication | |||
Ball Screw | Automatic Oil Lubrication System | ||
Linear Guide | Automatic Oil Lubrication System | ||
Dust Collection | |||
Standard | Manual Push-pull Drawer | ||
Optional | Chip Conveyor System | ||
Protection | |||
Machine Protection | Semi-Sealed Protection Door | ||
Guide Rail Protection | X Concertina Movement Protection | ||
Machine Data | |||
Height | 3300mm | ||
Width | 2800mm | ||
Length | 6900mm | ||
Weight | 8500kg | ||
Machine Operation Requirements | |||
Electricity | 30KW 3Phase | ||
Environment Temperature | 5~40 C. Degree | ||
Environment Humidity | 30~70 | ||
Vibration Intensity | <0.5G | ||
Protect from floating dust, Corrosive Air | |||
Grounding Resistance | <10Ω | ||
