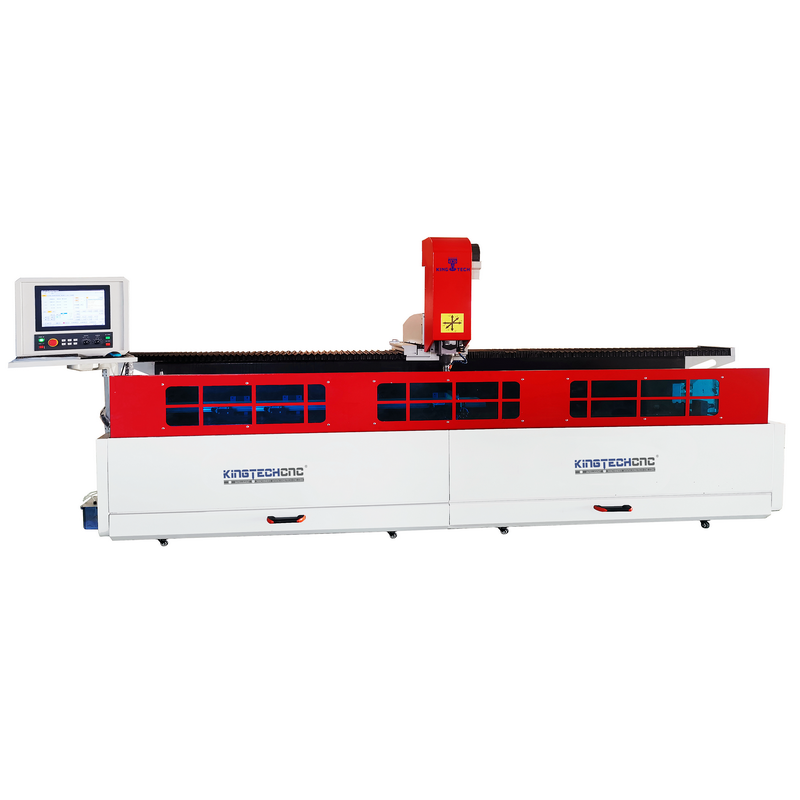

VX 4 Axis Aluminum CNC Profile Machining Center

*Suitable for Industry of Doors&Windows,Furniture,etc.
*Applicable for Aluminium,Copper,PVC Profiles processing
*Functions: Milling,Drilling,Tapping,Routing and Chamfering,etc.
*4-Axis Servo or Pneumatic Rotary worktable allows 3 surfaces processing with one-time clamping
*Professional Optimized and Easy-Operating System
*High Speed Spindle, Stable, Low Noise, Powerful Milling and Tapping
*Oil Spray Cooling System for better processing and longer Tool lifespan
*4-8 Tools Linear Tool Magazine
Optional:
*High Efficiency Chip Conveyor System
Quantity:
  • KT-VX3-3000U
  • KINGTECHCNC

Features


*3+1 Axis Rotary Worktable
*Industrial Cam PC System
*Mouse and LCD Touching Screen
*Automatic Protective Doors
*X/Y/Z Servo Driving
*Free Installation and Remote Training
*High Speed High Precision
*High Speed Powerful Spindle
*Optional Linear Tool Magazine
*Optional Umbrella Type 12 Tools
*Optional Chip Conveyor System
*Optional Tool Detection

*Tapping Function Available


PRODUCT SPECIFICATIONS


Model No.
KT-VX3-3000U
Travel Stroke
X-Axis
3000mm (Different Length is available)
Y-Axis
300mm
Z-Axis
300mm
Feeding
Axis
X
Y
Z
C
Feeding Speed
60m/min
20m/min
20m/min
15m/min
Processing Speed
15m/min
15m/min
15m/min
15m/min
Positioning Accuracy
±0.05mm
±0.05mm
±0.05mm
±0.05mm
Repositioning Accuracy
±0.02mm
±0.02mm
±0.02mm
±0.02mm
Servo Motor
Power
1.0KW
0.75KW
0.85KW
0.85KW
Stall Torque
4.77N.m
2.39N.m
3.06N.m
2.39N.m
Speed
3000rpm
3000rpm
3000rpm
3000rpm
Spindle
Power
7.5KW
Max. Torque
12.0N.m
Speed
24000rpm
Tool Magazine
Magazine Type
Umbrella
Tool Shank
ISO30
Capacity
8
Tool Chang Time
3-5s
Power Supply
Voltage
415V/380V/220V As per requirements
Transformer Requirement
20 KVA
Air Source
0.6Mpa~0.9Mpa 600L/min
Cooling
Processing
Mist Spray Cooling System
Spindle
Air-Cooling
Lubrication
Ball Screw
Automatic Oil Lubrication System
Linear Guide
Automatic Oil Lubrication System
Dust Collection
Standard
Manual Push-pull Drawer
Optional
Chip Conveyor System
Protection
Machine Protection
Semi-Sealed Protection Door
Guide Rail Protection
X Concertina Movement Protection
Machine Data
Length
4200mm
Width
1900mm
Height
2500mm
Weight
1800kg
Machine Operation Requirements
Electricity
11KW 3Phase
Environment Temperature
5~40 C. Degree
Environment Humidity
30~70
Vibration Intensity
<0.5G
Protect from floating dust, Corrosive Air
Grounding Resistance
<10Ω
