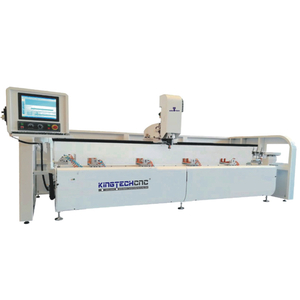

KT-VT3-6500U CNC Aluminum Profile Machining Center
Main Feature
*Suitable for industry of Doors&Windows,Furniture,TV Display Frames,etc.
*Applicable for Aluminium,Copper,PVC Profiles processing.
*Functions: Milling,Drilling,Tapping,Rounting and Chamfering,etc.
*Professional CAM PC System or Industrial Control System.
*24000RPM High Speed Spindle, Stable, Low Noise

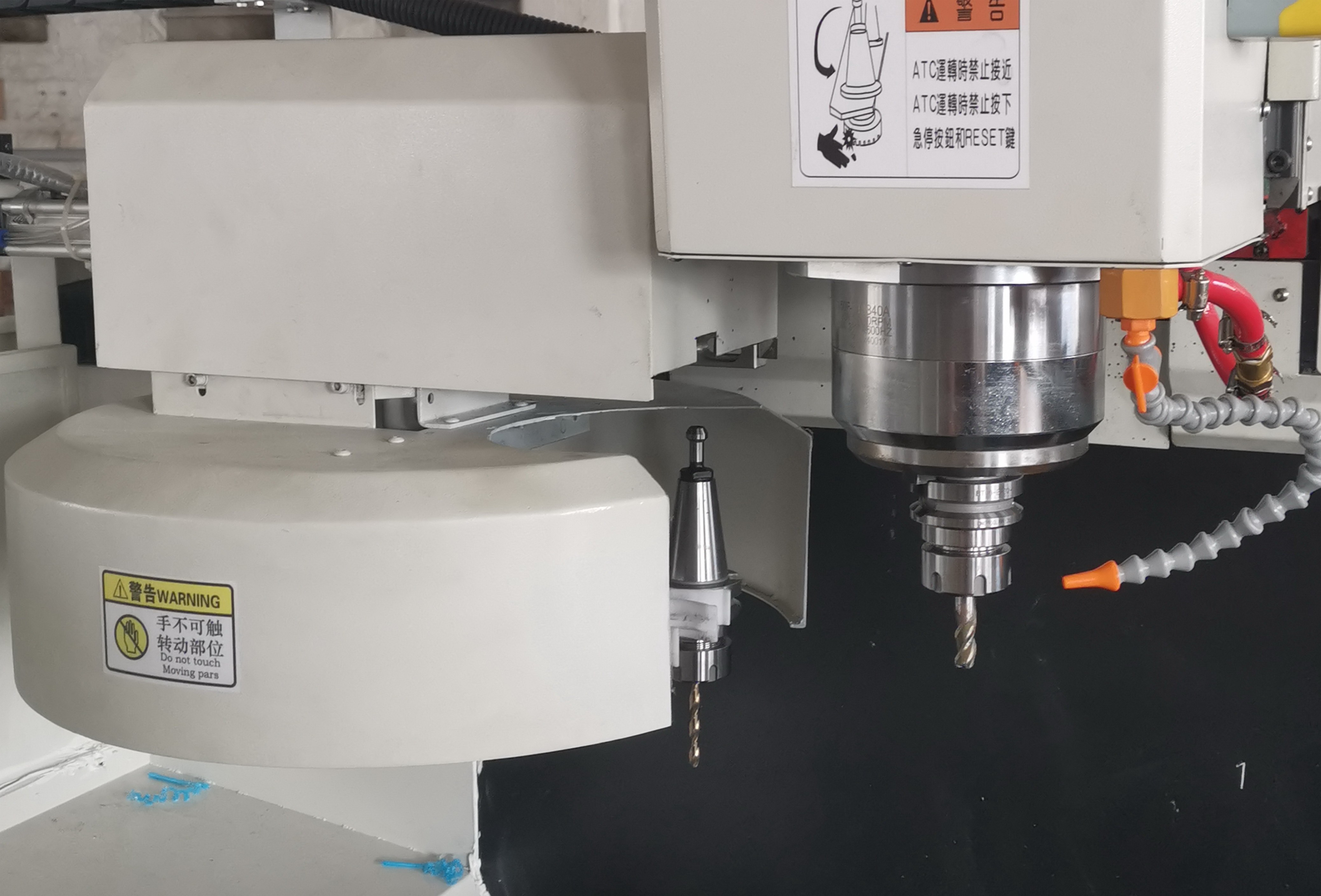

*12 Tools Rotary Umbrella Type Servo Tool Magazine.
*Automatic Protective Door System
*Oil Spray Cooling System for better processing and longer Tool lifespan
Optional:
*High Efficiency Chip Conveyor System.
*Automatic Positioning and Clamping System.
Parameters
Model No. | KT-VT3-6500U | ||
Travel Stroke | |||
X-Axis | 6500mm (Different Length is available) | ||
Y-Axis | 300mm | ||
Z-Axis | 300mm | ||
Feeding | |||
Axis | X | Y | Z |
Feeding Speed | 60m/min | 20m/min | 20m/min |
Processing Speed | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.05mm | ±0.03mm | ±0.03mm |
Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
Spindle | |||
Power | 7.5KW | ||
Max. Torque | 12.0N.m | ||
Speed | 24000rpm | ||
Tool Magazine | |||
Magazine Type | Umbrella | ||
Tool Shank | ISO30 | ||
Capacity | 12 | ||
Tool Chang Time | 2s | ||
Power Supply | |||
Voltage | 415V/380V/220V As per requirements | ||
Transformer Requirement | 20 KVA | ||
Air Source | 0.6Mpa~0.9Mpa 600L/min | ||
Cooling | |||
Processing | Mist Spray Cooling System | ||
Spindle | Air-Cooling | ||
Lubrication | |||
Ball Screw | Automatic Oil Lubrication System | ||
Linear Guide | Automatic Oil Lubrication System | ||
Dust Collection | |||
Standard | Manual Push-pull Drawer | ||
Optional | Chip Conveyor System | ||
Protection | |||
Machine Protection | Semi-Sealed Protection Door | ||
Guide Rail Protection | X Concertina Movement Protection | ||
Machine Data | |||
Length | 7200mm | ||
Width | 1800mm | ||
Height | 2500mm | ||
Weight | 3200kg | ||
Machine Operation Requirements | |||
Electricity | 11KW 3Phase | ||
Environment Temperature | 5~40 C. Degree | ||
Environment Humidity | 30~70 | ||
Vibration Intensity | <0.5G | ||
Protect from floating dust, Corrosive Air | |||
Grounding Resistance | <10Ω | ||
