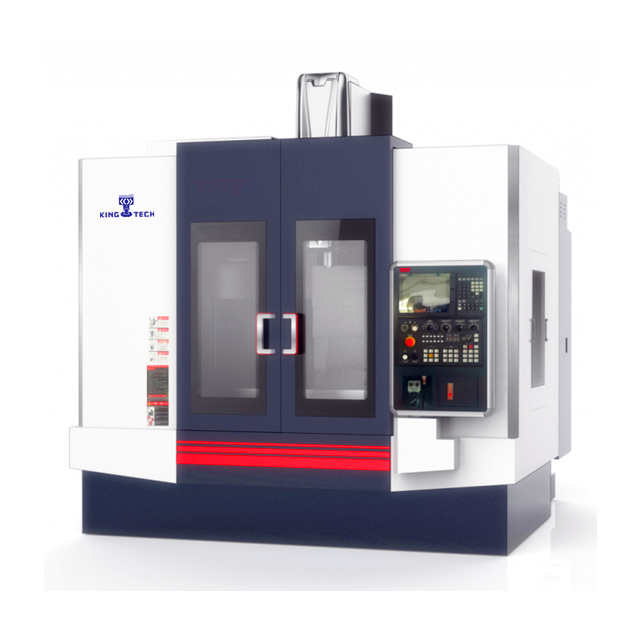

CNC Vertical Profile Machining Center
KT-VMC-850D
1.Picture
2.Main Features
*Applicable for Iron,Steel,Industrial Aluminum Profiles Fabrication.
*Functions: Milling,Drilling,Tapping,Routing and Chamfering,etc.
*Suitable for Industries of Auto Parts,Mould,Aerospace,etc.
*Professional Industrial Operation System.
*Powerful Mechanical Spindle,Stable,Low Noise
*Spindle Oil Cooling System
*Water Recycling Coolant System
*High Strength HT250 Casting Machine Base and Worktable
*Powerful BT40 Mechanical Spindle.
*24 Tools Disc Tool Magazine
*Coolant Recycling System.
*Protective Door System
3.Parameters
Model No. | KT-VMC-850D | ||
Travel Stroke | |||
X-Axis | 800mm (Different size is available) | ||
Y-Axis | 500mm (Different size is available) | ||
Z-Axis | 500mm (Different size is available) | ||
Distance from Spindle Nose to Worktable | 120-620mm | ||
Distance from Spindle Center to Column | 550mm | ||
Worktable | |||
Dimension(L*W) | 1000×500mm | ||
Max. Bearing Weight | 1000KG | ||
T Groove Width | 18mm | ||
T Groove Qty./Center Dis. | 5pcs/120mm | ||
Feeding | |||
Axis | X | Y | Z |
Feeding Speed | 48m/min | 48m/min | 30m/min |
Processing Speed | 15m/min | 15m/min | 15m/min |
Positioning Accuracy | ±0.008mm | ±0.008mm | ±0.008mm |
Repositioning Accuracy | ±0.008mm | ±0.008mm | ±0.008mm |
Servo Motor | |||
Stall Torque | 18.6N.m | 18.6N.m | 28.6N.m |
Speed | 3000rpm | 3000rpm | 3000rpm |
Spindle | |||
Power | 11.0/15KW | ||
Max. Torque | 64.0N.m | ||
Speed | 12000rpm | ||
Driving Type | Direct | ||
Balance Level | G1(ISO1940) | ||
Assembly Direction | Vertical | ||
Tool Magazine | |||
Magazine Type | Disc | ||
Tool Shank | BT40 | ||
Capacity | 24 | ||
Tool Chang Time | 2s | ||
Tool Limit | |||
Max. Dia. | ф75mm | ||
Max. Length | 350mm | ||
Max. Weight | 8000g | ||
Power Supply | |||
Voltage | 415V/380V/220V As per requirements | ||
Transformer Requirement | 25 KVA | ||
Air Source | 0.6Mpa~0.9Mpa 600L/min | ||
Cooling | |||
Processing | Water Recycle Cooling System | ||
Motor Power 0.75KW | |||
Spindle | Oil-Cooling System | ||
Motor Power 1.1KW | |||
Lubrication | |||
Ball Screw | Automatic Oil Lubrication System | ||
Linear Guide | Automatic Oil Lubrication System | ||
Dust Collection | |||
Standard | Manual Push-pull Drawer | ||
Optional | Chip Conveyor System | ||
Protection | |||
Machine Protection | Semi-Sealed Protection Door | ||
Guide Rail Protection | X Concertina Movement Protection | ||
Machine Data | |||
Dimension(L/W/H) | 2550*2250*2650mm | ||
Weight | 8000kg | ||
Operation Requirements | |||
Electricity | 30KW 3Phase | ||
Environment Temperature | 5~40 C. Degree | ||
Environment Humidity | 30~70 | ||
Vibration Intensity | <0.5G | ||
Protect from floating dust, Corrosive Air | |||
Grounding Resistance | <10Ω | ||
